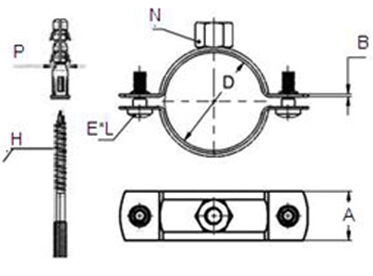

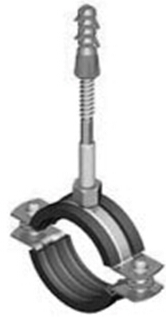

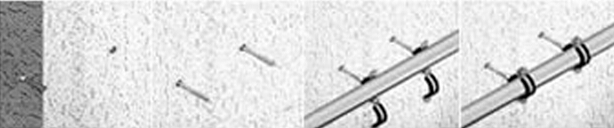

Name: Pipe Clamp-Full Set Code: 205 Description: * FOR VENTILATION PIPES                * FOR HEATING PIPES *FOR WASTE WATER PIPES               * FOR BASIN PIPES   ---TECHNICAL PARAMETER   RECOMMENDED LOADING:    1/8" - 2"                                             :1.5KN           2 1/2" - 3 1/2"                                    :2.3KN               4" - 8"                                                :2.8KN                       WORKING TEMP                                -40 Degree ~ 110 Degree MATERIAL                                          STEEL - DC01                 FURFACE FINISHING                          ZINC-PLATED ≥ 8 µm            RUBBER PROFILE                              EPDM NOISE LEVEL                                     17dB (A) CREW MAX TORQUE                         M5-1.0 Nm M6-2.0Nm PACKING SOLUTION                         TWO SETS IN ONE BAG   NOTE: THREAD RODS SHOULD BE FULLY SCREWED INTO NUT                             *Used for mounting of pipes to the  vertical / horizontal walls, ceilings and floors *EPDM lining for: – noise reduction level up to 17 dB according to DIN 4109 vibration reduction – partial compensation of thermal expansion *Easy and safe assembly through Philips combi side screws. *Side screws are protected against loss during assemblewith the help of plastic washers.             CODE    SIZE ΦD STEEL SCREW NUT TAPPING PLUG B*A E*L N H P 205-22 1/2” 20-24 1.5*20 M5*15  M8  M8*80 S10X50 205-28 3/4” 25-28 1.5*20 M5*15  M8  M8*80 S10X50 203-35 1” 32-35 1.5*20 M5*15  M8  M8*80 S10X50 205-40 1 1/4” 39-46 1.5*20 M6*20  M8  M8*80 S10X50 205-48 1 1/2” 48-53 1.5*20 M6*20  M8  M8*80 S10X50 205-60 2” 59-66 1.5*20 M6*20  M8  M8*80 S10X50 205-75A 2 1/2” 74-80 2.0*25 M6*25 M10 M10*100 S14X75 205-75B 1.5*20 M6*20 M8 M8*80 S10X50 205-83A 3” 87-94 2.0*25 M6*25 M10 M10*100 S14X75 205-83B 1.5*20 M6*20 M8 M8*80 S10X50 205-115A 4” 110-116 2.5*25 M6*30 M10 M10*100 S14X75 205-115B 2.0*20 M6*30 M8+M10 M8*100 S10X50 205-115C  1.5*20 M6*30 M8+M10 M8*100 S10X50 205-140 5” 135-143 2.5*25 M6*30 M10 M10*100 S14X75 205-160 6” 162-170 2.5*25 M6*30 M10 M10*100 S14X75 205-200 8” 207-219 2.5*25 M6*30 M10 M10*100 S14X75
